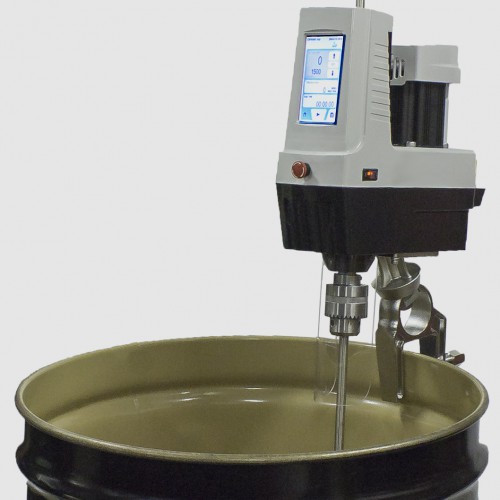

A powerful combination of torque and electronic sophistication. The robust ½ horsepower motor, PC/PLC communications and extensive features make the Caframo Crossover 1540 Industrial Mixer unparalleled in the market. Mixing up to 200 litres (55 gallons) of basic pre-mix, industrial pilot plant volumes, or full production batches, this portable mixer weighs only 12 kg (26.5 lb). The resistive touch screen enables simple feature operation (timers, alarms, rotation direction, resume on power up, start, stop) without removing your gloves! Control the mixer with a PC or PLC via USB, RS232 or 4‑20 mA or data log speed and torque directly to a memory stick. Install immediately with standard 120 V cord set, and four bolt mounting. Optional plate or C‑clamp set attaches the Crossover to a stand, drum or customer mount and allows optimal shaft angle in vessel. Includes chuck, chuck key, chuck shaft guard, installed screen protector, USB memory stick, mounting bolts, power cord, manual, calibration certificate and three year warranty.

specifications
Ambient Temperature Operation	5-40 ºC(41-104ºF)
Approvals - North America	CAN/CSA 61010-1 & 61010-2-51 3rd Ed., UL 61010-1 3rd Ed.
Connectivity Ports	Standard USB A, Mini USB B, DB9, 4-20 mA
Frequency	60 Hz
Housing	Flame Reardant Nylon 6
Output Power	300 Watts (½ hp)
Relative Humidity Operation	80%
Rotation Direction	Both
Speed - High Range	300-1500 rpm
Speed - Low Range	50-299 rpm
Speed Accuracy	Rolling average of 10 second period
Speed Display	Yes
Through Shaft	Yes
Timer	Yes
TORQUE DISPLAY	Yes
TORQUE MAXIMUM	3000 Ncm (264 in-lbs = 4248 in-oz)
VISCOSITY MAXIMUM	180 000 mPa·s (180 000 cP)
Voltage	120 volt
Volume Maximum	200 L (55 US Gallons)
Warranty	3 years
Weight	12 kg (26.5 lb)
ZERO TORQUE	Yes
SPEED	50-1,500 rpm
