Caframo Shaft 762 mm (30") - A753

  • SKU CS-1740054
  • MPN: A753
  • Availability: In Stock
  • $137.47

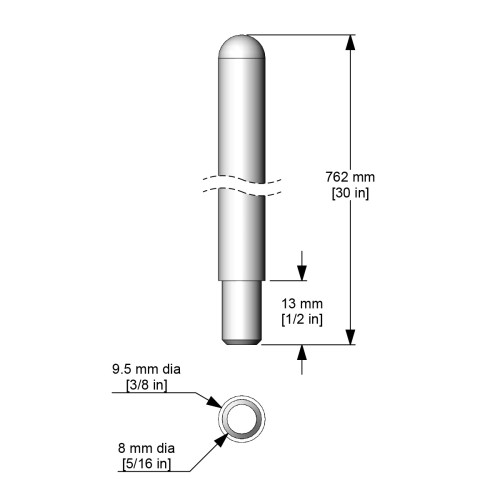

Shaft of ⅜ in (9.5 mm) diameter with a turned down ½ inch x 5/16 inch (13 mm x 8 mm) end. Compatible with impeller blades having bores of either ⅜ in (9.5 mm) or 5/16 inch (8 mm) diameter. Shaft is constructed of passivated 316L stainless steel for enhanced corrosion protection. The shaft has a length of 30 inches (760 mm.)

Specifications
  • Shaft Diameter

    9.5 mm (⅜”)
  • Shaft Length

    760 mm (30″)
  • Shaft Material

    Passivated 316L stainless steel
Features & Benefits

Features

  • Passivated 316L stainless steel
  • 9.5 mm (⅜”) diameter shaft with 8 mm (5/16”) turned down end

Benefits

  • Chemically inert and corrosion resistant
  • Accomodates both 9.5 mm (3/8") and 8 mm (5/16") impeller bores
Models
  • CS-1740050

    Shaft - 460 mm (18”) length x 9.5 mm (⅜”) diameter, 250 g (0.5 lb)

  • CS-1740051

    Shaft - 460 mm (18”) length x 9.5 mm (⅜”) diameter, 250 g (0.5 lb)

  • CS-1740053

    Shaft - 600 mm (24”) length x 9.5 mm (⅜”) diameter, 340 g (0.7 lb)

  • CS-1740054

    Shaft - 760 mm (30”) length x 9.5 mm (⅜”) diameter, 430 g (0.9 lb)

  • CS-1740048

    Shaft - 300 mm (12”) length x 9.5 mm (⅜”) diameter, 180 g (0.4 lb)
